High pressure resistance shaft sleeve Tungsten carbide bushing for
petroleum chemical industrial

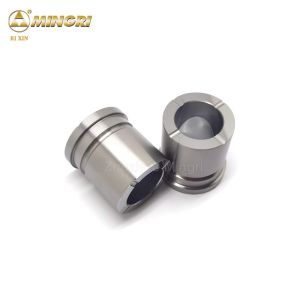

Description of tungsten carbide sleeve
Tungsten carbide bushing set up by virgin tungsten carbide
material. It’s shows high hardness and bending strength. That has
superior performance on resisting abrasion and corrosion, which is
widely used in many industries.
For its widely usage. Tungsten carbide bushing are often made with
high accuracy, and owing to their perfect finish, precise
dimension, durability and corrosion resistance. These are highly
appreciated by the clients at home and aboard.
In addition, differ from the various of application environment.
There are several types of Tungsten carbide bushing. Most of the
specifications are all customized. Zhuzhou Mingri has backed by
rich industry knowledge and production experience of various
Tungsten carbide bushing. This can produce various of Tungsten
carbide bushing based on specific design.
Product name
| tungsten carbide sleeve |
Material
| 100% virgin tungsten carbide |
Color
| grey |
| Standard |
ISO 9001:2008
|
| Grade |
YG6X YG10X YG8 YG15 / YN8 YN11 ect
|
| Dimensions(mm) |
OD(10~ 300) x ID(3 ~ 260) x H(8-150)
|
| Grain size(um) |
0.6/0.8/1.2/2/4
|
Feature of tungsten carbide sleeve
1. High hard resistance
2. High corrosion resistance
3. Pressured resistance
4. Wear resistance
5. High bending strength
Application of tungsten carbide sleeve
Tungsten carbide bushing applications is wide, which is a device to
protect a class of components. It is in the actual work and the
role and purpose of its application environment have a great
relationship. Valve applications, bushings be installed in the
valve stem cap trap, in order to reduce the valve leakage, to seal;
bearing applications, the use of bush to reduce wear between the
bearing and the shaft seat, avoid the gap between the shaft and the
hole increases and so on.
Tungsten carbide bushing production and processing of
high-strength, can withstand prolonged load, with high chemical
stability, alkali, alcohol, hydrocarbons, acid, oil, detergent,
water (sea water), and has no smell , non-toxic, tasteless,
non-rust characteristics, its widely used in petrochemical industry
for submerged oil pump, slurry pump, water pump, Centrifugal
Pump,etc.
