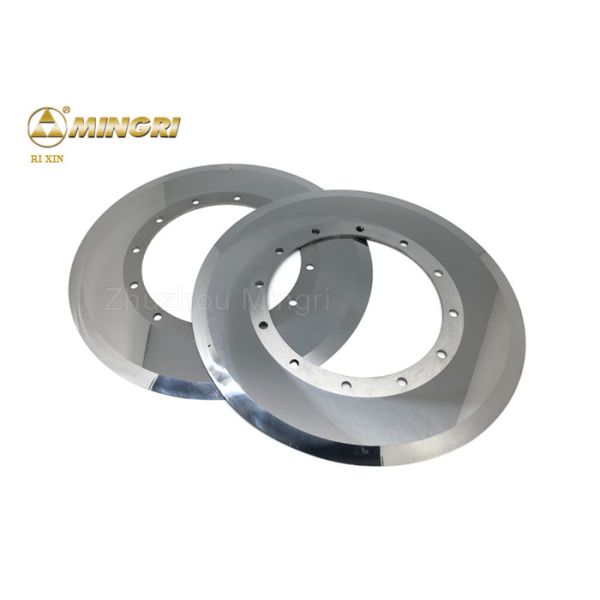

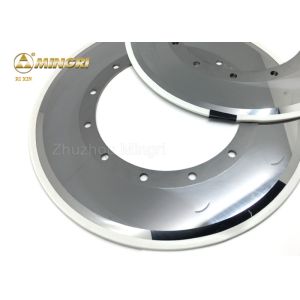

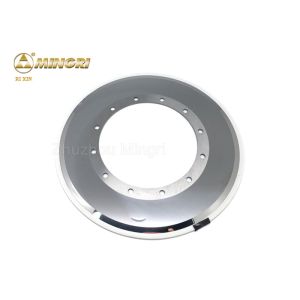

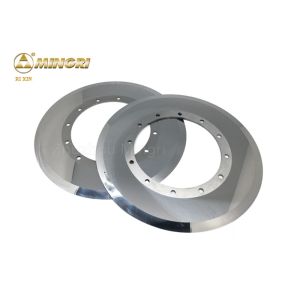

300*160*3.3 calcium silicate board cutting carbide blade cutter
knife
For details of this product, please click More:
Description
| Item | Tungsten carbide blade |
| Grade | MR016, MR020 , MR030,YG10X , YG12X, YG13X |
| Sizes | Standard or customized. |
| Brand | Rixin |
| Country of Origin | Zhuzhou, China |
| Cutting edge | Square /Single / double bevel / compound double bevel |
| Usage | Asbestos Sheet, fiber cement board, calcium silicate board |
| |
| |
Zhuzhou Mingri Cemented Carbide Co., Ltd was established in 2001 with the investment of 10 million dollars,
area of 33300 square meters and 160 staffs. We have obtained 35
patents in invention, utility model and design , and passed
ISO9001:2015 Certification in quality and GB/T 24001-2004/ISO
14001:2004 Certification in environment. offering all kinds of high
quality tungsten carbide products and technical services to all
clients. Our products are exported to US, Europe, Japan, Taiwan and
South-east Asia etc. We have won support and trust from customers
both home and abroad.
We have the largest inventory of tungsten carbide blades in the
world, stocking over 100,00 pieces of different shapes and sizes.
What may be a special blade to you might not be for us, send us
your requirements and we can find out. These tungsten carbide
blades are used for cutting rubber, packaging, plastics, fiber,
film, foil, mat board, capsules as well as other products. With our
motto of “Easy to do business with” we make sure we can ship all
blades the same day we get the order.
Grades:
| Grade |
ISO Grade | Hardness (HRA)±0.5 |
Density (g/cm3) ±0.2 |
TRS Mpa(min) |
Characteristics and Application |
| MR005 | K10 | 92.8 | 14.75-14.90 | 2400 | Sub-micron grain, suitable for cutting paperboard, Fiber optic,
Leather. Apply to finish machining of non-ferrous metals and
woodworking tools. |
| MR006 | K10-K20 | 91.8 | 14.85-15.00 | 2400 | Fine grain, apply to cutting non-ferrous metals, glass drill,
dental drill etc. |
| MR010 | K05 | 92.3 | 14.55-14.7 | 2500 | Sub-micron grain, apply to cutting composite material ,finish
machining of non-ferrous metals and woodworking tools. |
| MR011 | K20 | 91.3 | 14.55-14.7 | 2500 | Fine grain, mainly used for woodworking blade and tobacco machine
cutter. |
| MR012 | K10-K20 | 93.5 | 14.50-14.65 | 3300 | Ultra-fine grain, apply to process of glass fiber reinforced
plastics(GRP),titanium alloy, high hardness quenched steel. |
| MR015 | K10-K20 | 92.8 | 14.45-14.6 | 3000 | Ultra-fine grain, apply to machining of gray cast iron and
heat-resisting alloy. |
| MR016 | K30 | 90.2 | 14.50-14.65 | 2600 | Medium grain, apply to cutting asbestos ,machining of low hardness
gray cast iron. |
| MR020 | K20-K30 | 91.8 | 14.35-14.50 | 3000 | Sub-micron grain, apply to cutting corrugated board ,chemical
fiber, plastics, leather, battery pole pieces ,all kinds of milling
cutters and hole-machining tools. |
| MR021 | K20-K30 | 90.5 | 14.38-14.53 | 2800 | Fine grain, mainly used for woodworking blade and tobacco machine
cutter. |
| MR022 | K30 | 89.5 | 14.4-14.55 | 2700 | Mainly used for regular sealing ring, die, wear part, mining tools
and machining of non-ferrous cutting blades. |
| MR025 | K10-K20 | 92.5 | 13.95-14.10 | 3500 | Ultra-fine grain, apply to cutting corrugated board, paperboard,
leather, composite materials, machining of gray cast iron and
heat-resisting alloy. |
| MR026 | K40 | 89.5 | 14.15-14.30 | 3000 | Fine grain, mainly used for woodworking blade and tobacco machine
cutter,suitable for cutting plastics, paper. |
| MR027 | K40 | 89 | 14.22-14.37 | 3000 | Medium grain, used for cutting plastics, and rough machining of
non-ferrous metals. |
| MR030 | K40 | 90.5 | 13.95-14.1 | 3200 | Sub-micron grain, superb abrasive resistance and toughness, apply
to woodworking cutters,cutting corrugated board, battery pole
pieces etc. |
| MR040 | K40 | 89.8 | 13.80-13.95 | 3200 | Sub-micron grain, superb abrasive resistance and toughness, apply
to woodworking cutters, rolling shear blades,suitable for cutting
paperboard . |
| MR041 | K40 | 89 | 13.95-14.10 | 3200 | Fine grain, apply to cutting non-ferrous metals. |
| MR042 | K40 | 87.5 | 13.95-14.10 | 3000 | Medium grain, apply to regular sealing ring, die, wear part, mining
tools and machining of non-ferrous cutting blades, rolling shear
blade, weld assembly. Suitable for cutting paper, nonferrous
metals. |
| MR050 | | 91 | 13.6-13.8 | 3600 | Ultra-fine grain, apply to machining of gray cast iron and
heat-resisting alloy. |
| MR055 | K40 | 86.3 | 13.65-13.80 | 2800 | Medium grain, apply to regular sealing ring, die, wear part, mining
tools and machining of non-ferrous cutting blades, rolling shear
blades etc. |
Other sizes can be supplied according to customers’ requirements.
Main products:
We are specialized in all kinds of tungsten carbide profiles and
dies, cutting tools, mining tools, wear parts and all kinds of
non-standard customized tool parts with high performance in the
industry.
For details about the below products, please click the More on below pictures:
For details about our company, equipments, inspection and quality,
please refer to
http://www.tungstencarbide-tools.com/aboutus.html
http://www.tungstencarbide-tools.com/factory.html
http://www.tungstencarbide-tools.com/quality.html
