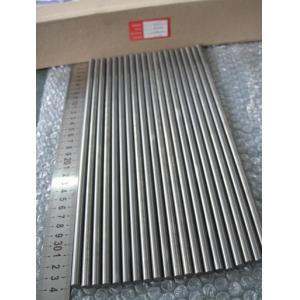

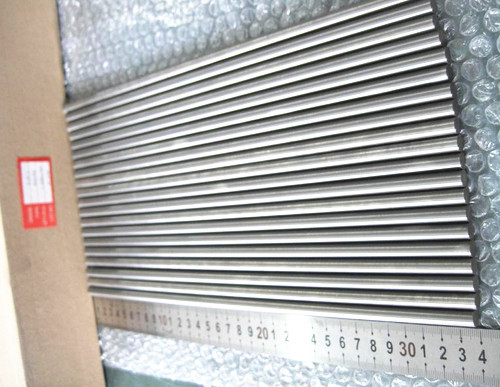

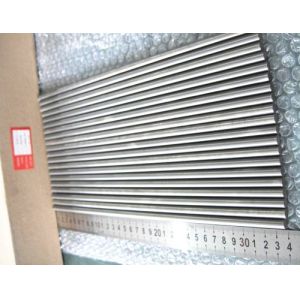

CUSTOMIZED TUNGSTEN CARBIDE RODS FOR END
MILS:YL50,YU06,YU08,YU09,YU12,YF06,YF08,YG6X,YG8,YL10.2
Description:
1. 100% virgin raw material with submicron and average grain size.
Variety of grades for choice;
2. Have better wear resistance,higher toughness,high
precision,better deformation and fracture resistance,results in a
long life and good size accuracy.
3. Product Types available: Blank rods, ground rods, thread rods,
rod with one/two/three holes.
4. High hardness(>=89.5HRA) and bending strenght(>=2600Mpa);
5. Very good mechanical &chemical stability;
6. HIP sintering and precision grinding to ensure good performance.
7. We provide:high quality & low price & fast delivery & best
service;
Application:
Widely used in end mills,drills,micro-mills,etc.
Our carbide rods are used for cutting aluminum alloy ,cast iron ,
stainless steel,
Refractory alloy steel, nickel-based alloy , titanium alloy and
nonferrous materials,
For making PCB drills , drills , end mills &reamers , mold
punches , core pins&hole drilling tools
Grade:
| Grade | Density
g/cm3 | T.R.S
MPα | Hardness
HRA | Properties & Applications |
| YL50 | 13.86 | 2060 | 1095 | Suitable for manufacturing punching dies and tools. |
| YU06 | 14.7 | 3000 | 2050 | Suitable for manufacturing milling cutters for machining PCB. It is
also suitable for manufacturing various kinds of solid cemented
carbide tools for machining glass fiber, wood, plastics, paper and
brass, Al alloy etc. |
| YU08 | 14.56 | 4000 | 1900 | Suitable for manufacturing micro-drills with diameter less than
0.8mm for machining PCB. It is also suitable for manufacturing
various kinds of solid cemented carbide tools for machining glass
fiber, wood, plastics, paper and brass, Al alloy etc. |
| YU09 | 14.36 | 3900 | 1950 | Suitable for manufacturing micro-drills for machining PCB. It is
also suitable for manufacturing various kinds of solid cemented
carbide tools for machining glass fiber, wood, plastics, paper and
brass, Al alloy etc. |
| YU12 | 14.05 | 4000 | 1750 | For manufacturing solid cemented carbide tools for machining steels
that are corrosion and heat resistant steel, stainless steel,
titanium alloy, and non-ferrous metals. |
| YF06 | 14.86 | 3800 | 1800 | Used for manufacturing drills with big diameters of 3.2-6.3mm for
machining PCB, drills of 0.8-3.2mm and mills, and it is also
suitable for making solid carbide tools for machining aluminum
alloy, plastic, PTFE and compound materials, such as carbon fiber,
etc. |
| YF08 | 14.55 | 3900 | 1800 | Used for manufacturing micro-drills for machining PCB. It is also
suitable for manufacturing various kinds of solid cemented carbide
tools for machining glass fiber, wood, plastics, paper and brass,
Al alloy, etc. |
| YG6X | 14.8 | 1800 | 1550 | Used for manufacturing solid carbide tools and wear parts. |
| YG8 | 14.6 | 2400 | 1400 | Used for manufacturing carbide core rods and wear parts. |
| YL10.2 | 14.5 | 4000 | 1550 | Used for manufacturing various kinds of solid cemented carbide
tools for machining heat-resistant alloys and Ti alloy etc. It is
also suitable for manufacturing micro-drills for machining PCB. |
Size and drawing:
Solid carbide rod
| | (Unit):mm | |
| Diameter | Tolerance | Length | Tolerance |
| D≤5 | 0-0.3 | 330<L | 0-6.0 |
| 5<D≤20 | 0-0.4 |
| 20<D | 0.1-0.6 |
| 310mm or 330mm | | (Unit):mm | |
| Diameter | Tolerance | Diameter | Tolerance |
| 1.2 |
+0.20 | 16.7 |
+0.50 |
| 1.7 | 17.2 |
| 2.2 | 17.7 |
| 2.7 | 18.2 |
+0.60 |
| 3.2 | 18.7 |
| 3.7 | 19.2 |
| 4.2 | 19.7 |
| 4.7 | 20.2 |
| 5.2 | 20.7 |
| 5.7 |
+0.25 | 21.2 |
| 6.2 | 21.7 |
| 6.7 | 22.2 |
| 7.2 | 22.7 |
| 7.7 | 23.2 |
| 8.2 |
+0.30 | 23.7 |
| 8.7 | 24.2 |
+0.70 |
| 9.2 | 25.2 |
| 9.7 | 25.7 |
| 10.2 | 26.2 |
| 10.7 | 27.2 |
| 11.2 |
+0.35 | 28.2 |
| 11.7 | 29.2 |
| 12.2 | 30.2 |
| 12.7 |
+0.45 | 31.2 |
| 13.2 | 32.2 |
| 13.7 | 33.2 | 0.80 |
| 14.2 |
+0.50 | 34.2 |
| 14.7 | 35.5 |
| 15.2 | 36.2 |
| 15.7 | 382 |
| 16.2 | 40.2 |
Usage:Drills and End mills:
Our advantages:
1.Strong R&D team. Professional engineers serve for clients,
recommending product and grades as per your applications. We also
offer after-sale service.
2. Strong Mould R&D team. We support customization of products
as per requirements, and ensure high working efficiency and product
quality.
3. Successful cooperation case: We cooperate with clients in
domestic and abroad, and get good feedback from them.
