lower price best quality tungsten carbide studs with high wear
resistance
RX 20 lower price best quality tungsten carbide studs for HPGR with
high wear resistance
Application of the tungsten carbide studs for HPGR
1. Rolling machine adopting cemented carbide approved wear
resistance of roll surface and enhanced lifetime of roll machine.
2. If rolling machine uses cemented carbide stud, it gets high
density, high strength and good impacting property.
3. Lifetime of Cemented carbide stud is over 10 times more than
surfacing material.
Description of tungsten carbide studs
| Type | Dimension |
| D | H | SR1 | SR2 | a° |
| SD1222 | 12.35 | 21.9 | 3.0 | 16.0 | 20 |
| SD1223A-X | 12.35 | 22.6 | 4.6 | 13.3 | 25 |
| SD1223B-X | 12.35 | 23.0 | 3.0 | 12.0 | 25 |
| SD1427A-X | 14.35 | 26.7 | 5.3 | 15.4 | 25 |

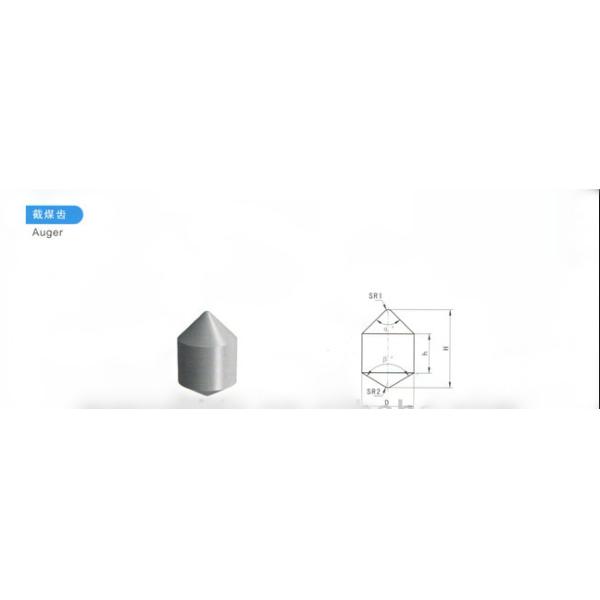

| Type | Dimension |
| D | H | h | SR1 | SR2 | a° |
| T1022178 | 8.99 | 16.80 | 10.80 | 1.90 | 1.60 | 77 |
| 3T102778B | 15.68 | 25.20 | 14.10 | 1.60 | 1.00 | 80 |
| 3T1022178B | 8.93 | 16.80 | 10.80 | 1.20 | 1.00 | 79 |
| 3T1021278B | 12.40 | 21.10 | 12.70 | 1.50 | 1.00 | 80 |
| Type | Dimension |
| D | H | A | a° | e |
| SP0807-E15 | 8.25 | 6.90 | 0.50 | 45 | 1.50 |
| SP0908-E15 | 9.25 | 8.10 | 0.45 | 45 | 1.50 |
| SP1010A-G15 | 10.20 | 10.00 | 2.00 | 45 | 1.50 |
| SP1008-E16 | 10.25 | 8.00 | 0.50 | 45 | 1.60 |
| SP1010-E16 | 10.25 | 9.50 | 0.50 | 45 | 1.60 |
| SP1108-E15 | 11.25 | 8.00 | 0.50 | 45 | 1.50 |
Pcking & Shipping of cemented carbide studs
Production and Test of cemented carbide studs
1. electric discharge machining(EDM)
2. carving machine
3. ball grinding mill
4. press
5. sintering furnace,HIP
FAQ
Q1 : Are you Factory or trading company ?
We are Factory with 25 years of production experience.
Q2: Where is your factory located ?
We are located in Taizhou city, Zhejiang province where is 4 hour
away from Shanghai ,
One hour away from Ningbo and wenzhou City by train.
Q3: Is the price Competitive?
We have our own Factory. Thanks to strong production and
distribution system, we
promise to offer our customers the most competitive price.
Q4: Are the products High Quality?
Yes. All products will be tested before bulk production, and we
will check the physical
properties, shape and tolerance for ensuring qualified products
before shipping.
Q5: How to place an order?
1. Fill your Order List in our online Inquiry System.
(Also you can directly contact our salesperson by E-mail / Skype /
Whats App)
2. We will make a feedback to you ASAP after receive your order
list.
Q6: How we can trust your company ?
We support Aliababa trade insurance , 100% products quality
protection, 100% on -time
shipment protection, 100% payment protection for your covered
amount.
Q7: What’s your delivery time ?
For the normal type which we have mold it takes 7-15 days after
receiving the advance
payment.
For the non standard which we do not have mold it takes 15-35 days
after receiving the advance payment.
